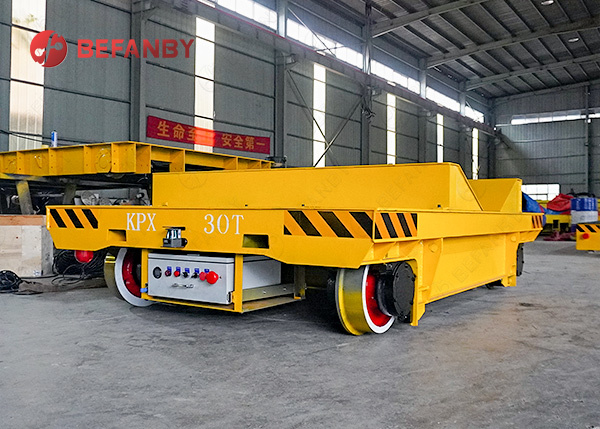

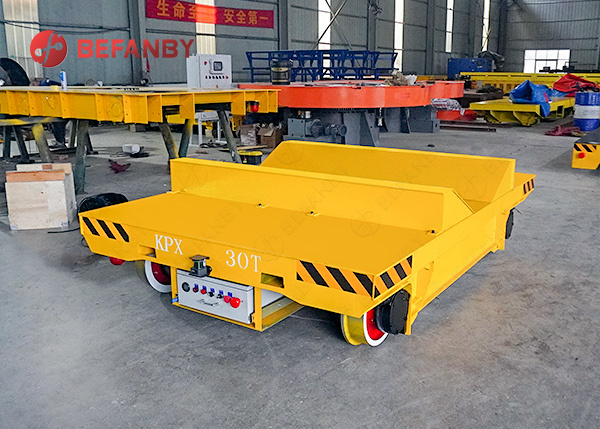

Easy Operation Factory Use with V Frame Device Rail Transfer Cart
| Herkunftsort | Henan, China |
|---|---|
| Markenname | BEFANBY |
| Zertifizierung | CE,SGS,ISO9001 |
| Modellnummer | KPX |
| Min Bestellmenge | 1 Set/Sets |
| Preis | Verhandelbar |
| Verpackung Informationen | Die bewegliche Hebeplattform wird mit der Plane verpackt, die Teile werden in einem hochwertigen Hol |
| Lieferzeit | 20-30 Tage wie üblich Lieferung |
| Zahlungsbedingungen | L/C, T/T, Western Union |
| Versorgungsmaterial-Fähigkeit | 1500 Set/Sets pro Jahr |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Farbe | Angepasst | Garantie | 24 Monate |
|---|---|---|---|
| Belastungskapazität | Angepasst | Stromversorgung | Batteriebetrieben |
| Hafen | Qingdao/tianjin/shanghai | Anwendung | Luftarbeit, Fabrik, Workshop, Baustelle |
| Materialien | Stahl |
Produkt-Beschreibung
Easy Operation Factory Use with V Frame Device Rail Transfer Cart
Product Description

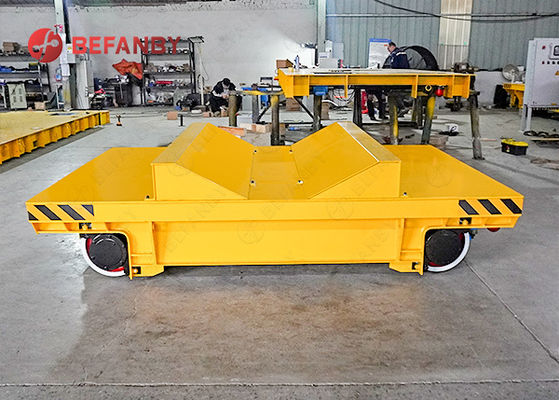

The transfer cart featured here is equipped with a coil support, a specialized transport device designed for coiled materials (such as steel coils, aluminum coils, copper coils, and paper coils). It operates on fixed rails for smooth and reliable operation, and its load capacity can be customized to suit specific needs, ranging from 1 to 100 tons. Its platform is equipped with a specially designed V-shaped or curved coil support, which securely supports the material during transport, preventing rolling and shifting during transportation and ensuring stability. Furthermore, the coil support can be adjusted and disassembled to increase the platform size.
Product Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 |
QU100 |
|
Company Profile
Product Feature
Dedicated Coil Handling: The tabletop is equipped with a V-shaped or adjustable coil support frame, allowing for flexible adjustment based on coil size, accommodating a wide range of coil sizes.
Stable Power Drive: Optional power supply options include battery power, low-voltage rail power, or busbar power, ensuring smooth operation and adaptability to diverse work environments.
High Load Capacity: Customizable load capacities ranging from 10 to 200 tons meet the coil transport needs of large-scale heavy industry, metallurgy, steel, and other industries.
Safe Operation: The vehicle body structure is stable, and the tabletop can be equipped with high-temperature resistant materials to ensure safe coil handling even in high-temperature, explosion-proof, and other challenging environments.
Shipping
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
Product Tap: Material Handling Cart , Rail Transfer Cart
